Plot an Information-Criterion Trajectory — plot.icTrajectory • bifrost

Plot IC scores and the running best IC across a stored bifrost search trajectory.

Usage

# S3 method for class 'icTrajectory'
plot(
  x,
  main = "IC Trajectory",
  show_delta = "overlay",
  ic_limits = NULL,
  delta_limits = NULL,
  xlab = "Search step",
  ylab = NULL,
  symbols = NULL,
  scales = NULL,
  point_sizes = NULL,
  line_widths = NULL,
  text_sizes = NULL,
  annotation = NULL,
  legend = TRUE,
  ...
)

Arguments

x: An icTrajectory object.
main: Plot title.
show_delta: One of "overlay", "panel", or "none". The default "overlay" draws proposal delta_ic values on a secondary y-axis. "panel" draws them in a lower panel. Logical values are accepted for compatibility: TRUE maps to "overlay" and FALSE maps to "none".
ic_limits: Optional numeric vector of length 2 giving y-limits for the primary IC axis.
delta_limits: Optional numeric vector of length 2 giving y-limits for the delta_ic panel or secondary axis. The order is preserved, so c(high, low) reverses the axis and draws positive delta_ic values downward.
xlab, ylab: Axis labels.
symbols: Optional named vector or list of point symbols. Valid names are accepted, rejected, error, baseline, and delta.
scales: Optional named numeric vector or list of global scale multipliers. Valid names are point, line, and text.
point_sizes: Optional named numeric vector or list of point sizes. Valid names are accepted, rejected, error, baseline, and delta.
line_widths: Optional named numeric vector or list of line widths. Valid names are accepted, rejected, error, running_best, delta, and zero.
text_sizes: Optional named numeric vector or list of text sizes. Valid names are main, axis, x_axis, y_axis, delta_axis, axis_label, annotation, and legend.
annotation: Optional named numeric vector or list of annotation settings. Currently supports baseline_label_offset, the text offset for the baseline IC annotation passed to graphics::text() when pos = 4.
legend: Legend controls. Use TRUE or FALSE to show or hide the legend, or provide a named list with any of show, position, inset, bty, and labels. position, inset, bty, and labels are passed to graphics::legend() after validation. The default delta legend label is rendered as \(\Delta IC\).
...: Unused; included for S3 compatibility.

Value

Invisibly returns x.

Examples

search <- list(
  baseline_ic = -1000,
  IC_used = "GIC",
  model_fit_history = list(
    fits = list(
      list(
        step = 1, candidate_node = 42, regime_id = "1",
        ic = -1010, accepted = TRUE, delta_ic = 10
      ),
      list(
        step = 2, candidate_node = 57, regime_id = "2",
        ic = -1008, accepted = FALSE, delta_ic = -2
      )
    )
  )
)
class(search) <- c("bifrost_search", "list")
traj <- icTrajectory(search)

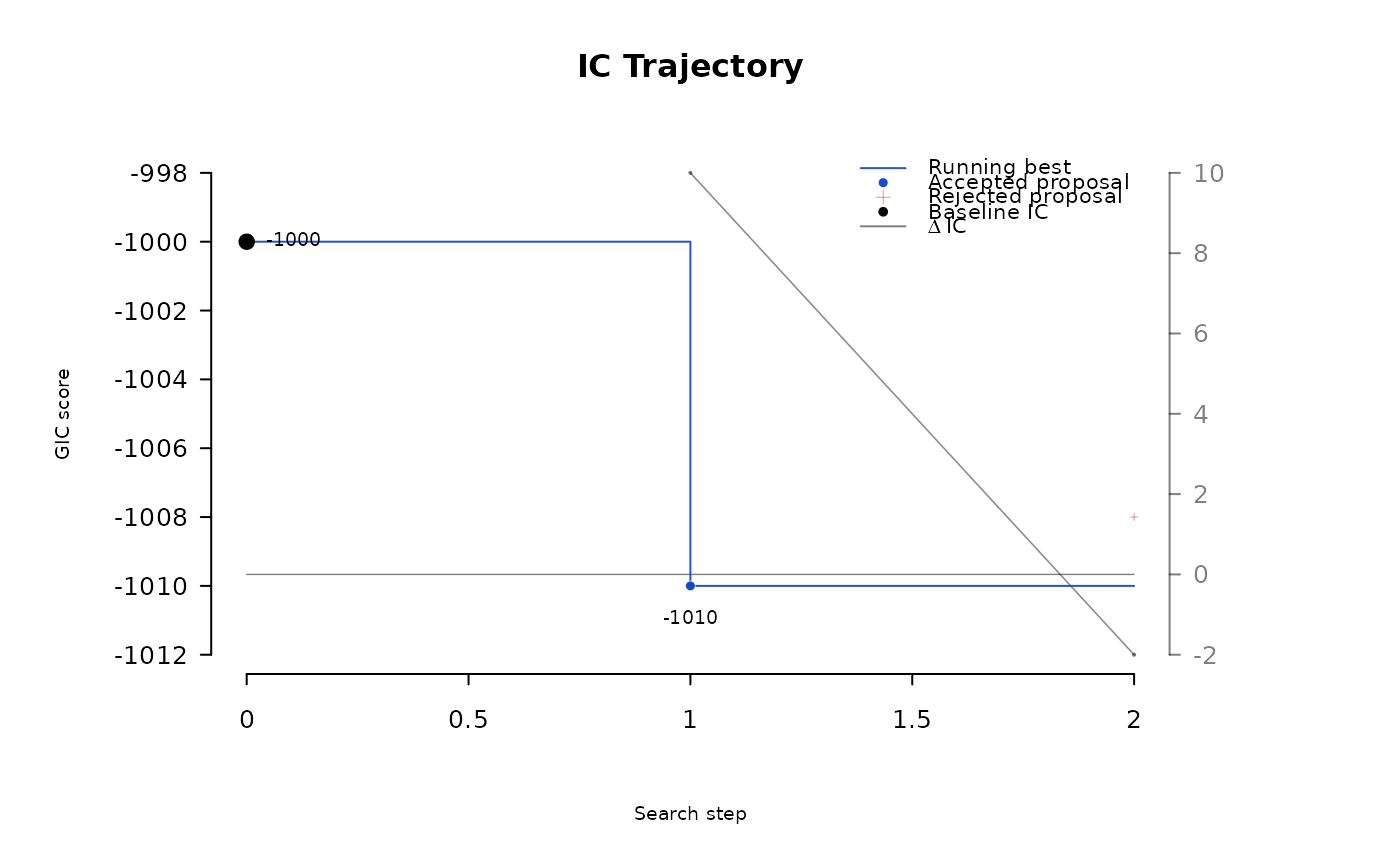

plot(traj)

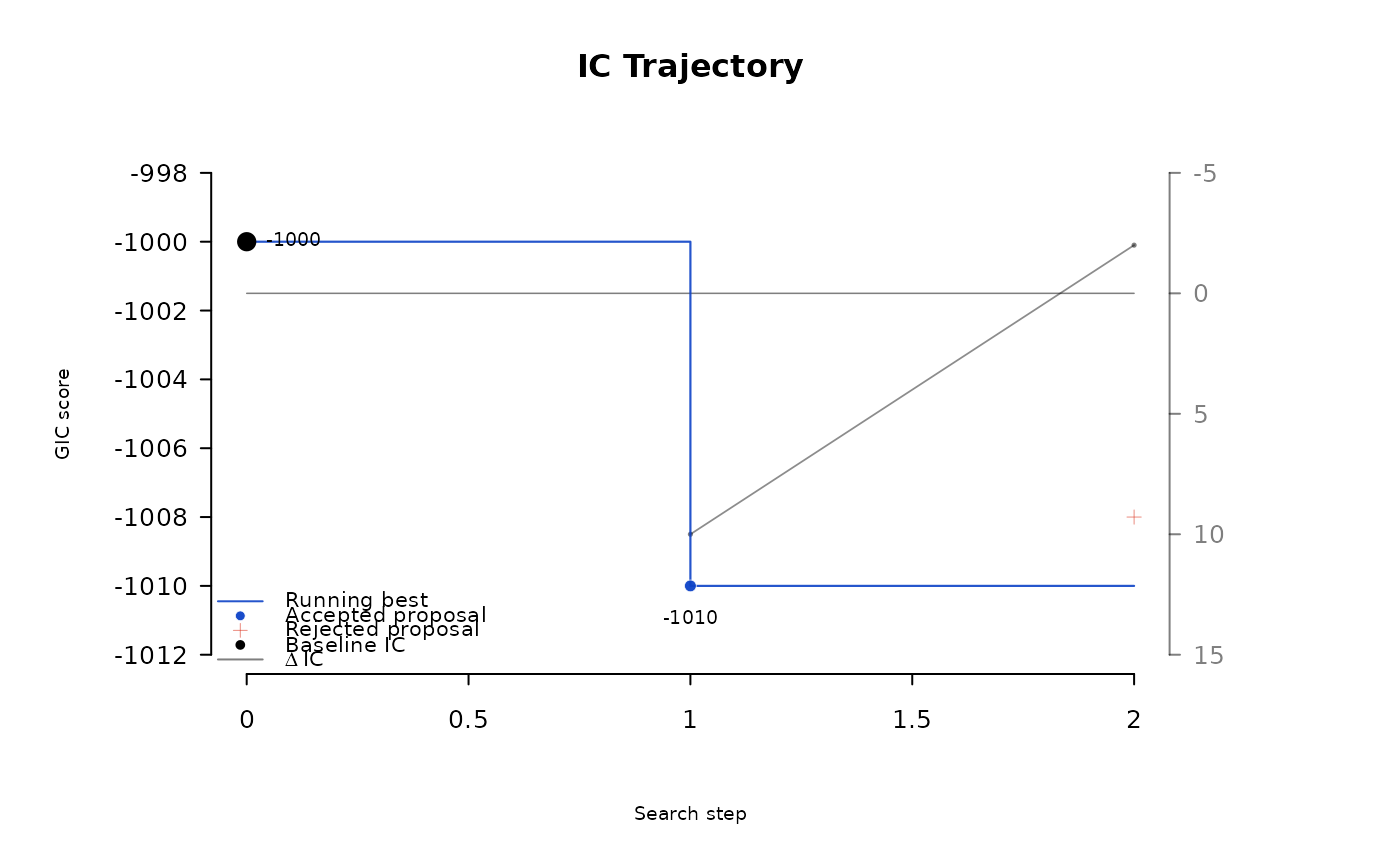

plot(
  traj,
  delta_limits = c(15, -5),
  scales = c(point = 1.2, line = 1.1),
  point_sizes = c(rejected = 0.7),
  legend = list(position = "bottomleft")
)
